Wesaborgs AB

RE-72

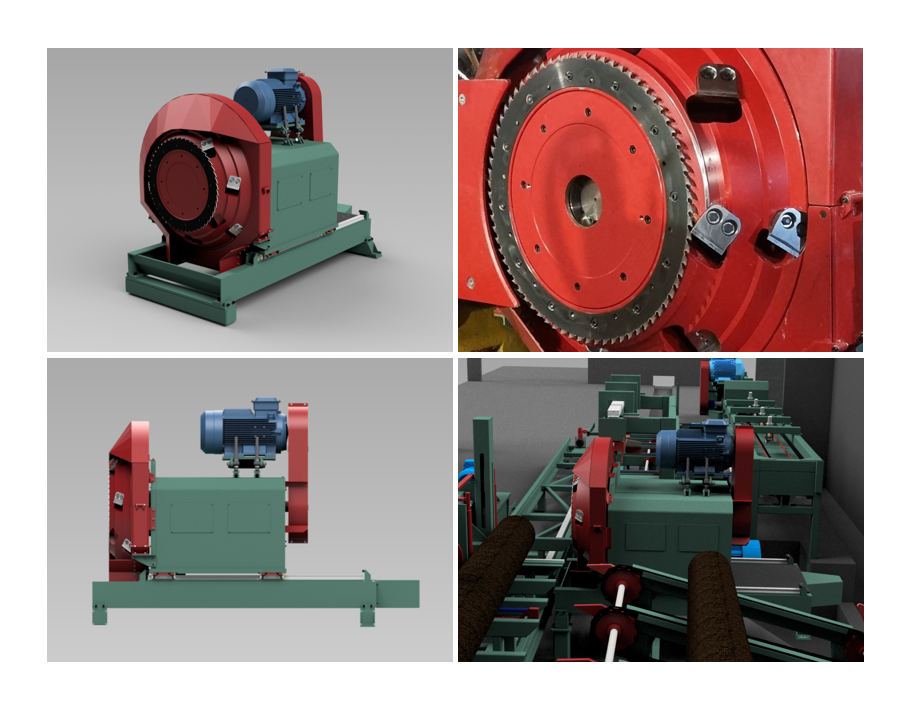

This Slab Chipper with face saw can be used to increase the capacity in a log saw. It reduces up to 4 cuts per log as it eliminates the slab while sawing the first board and produces quality chips.

At the development of this system, one of the main focuses has been energy efficiency. The canter head has been developed for optimal cutting geometry, which besides low energy consumption, also give a more even quality of the chips.

  • Outer diameter of the head: 1100mm

  • Face saw diameter: 720mm

  • Positioning with electro mechanical cylinder.

  • Max. cutting height: 600mm
    Max. chipping depth: 180mm

    Crosswidth positional length: 0-600mm
    Number of kniver: 6 (-12)
