Wesaborgs AB

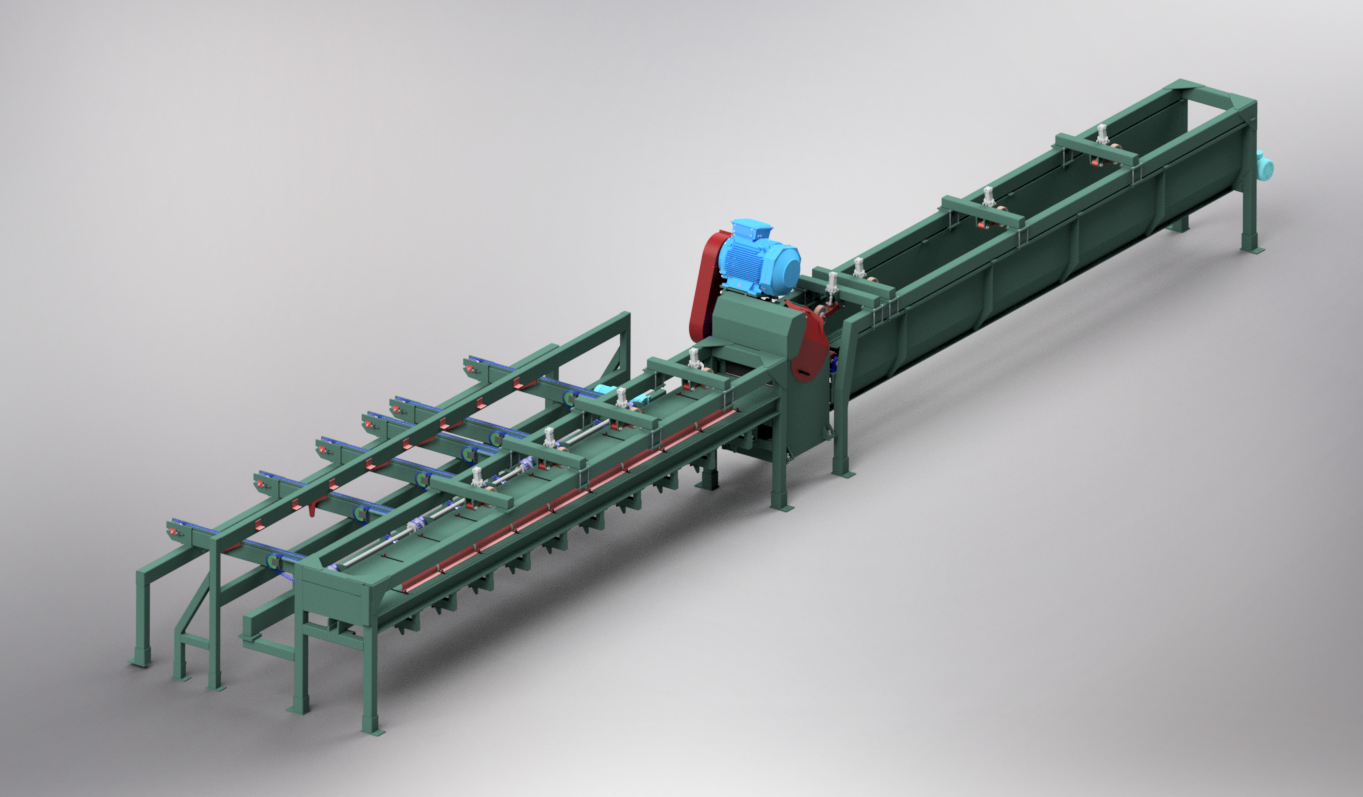

EDGE-LINE 602

A complete system for edge cutting with non-contact measuring.

  • An efficient edger for high wood exchange.

  • Powerful construction of high quality.

  • Compact and easy to serve.

  • User-friendly steering system for both manual- and automatic sawing.

  • High measure accuracy.

The system consists of:

  • Non-contact measuring system M602S

  • Edge cutter

  • Cross feed chain conveyor

  • Output chain conveyor with rib separation

  • Centering feeder


  • Capacity:                                 30 boards / min

    Max./min. outsawed wood width:    320/ 65mm

    Max./min. wood thickness:                 75 / 16mm

    Max. input wood width:                       500 mm
